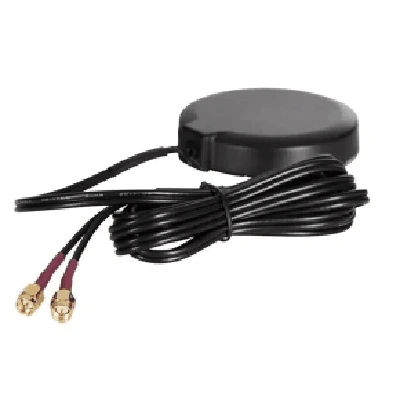

80*15mm 4G+GPS Combo Antenna
For all of our antennas that cover the GPS frequency 1.5GHz: We can convert the 1.5GHz GPS antenna to 1.6GHz in order to cover the Iridium (Satellite) frequency. This customization takes about 4 extra weeks in production and will If the connected device supplies power to the antenna, then it operates as Active.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product features
4G/LTE & GPS Combo: Has LTE connections + GPS connection: Two separate antenna cables for LTE and GPS: Both cables terminate with SMA-male connectors (we can customize connectors for large orders).
Operates simultaneously in the 698-960 MHz and 1710-2700 MHz bands, + GPS.
Dual band 4G LTE antenna, puck style, permanent mount
GPS operates as Active or Passive: See details below.
Typically used as vehicle antenna (cars, trucks) but useful and applicable for many applications.
Suitable for LTE / 4G, LTE-m, 3G / GSM, LoRa.
GPS operates as Active or Passive: See details below.
Cable is double-shielded, low-loss and very flexible. The cable-type is equivalent or better than LMR-100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174. The higher quality of the cable of this antenna translates into lower loss/better performance. These antenna cables are rated for outdoor use and are also suitable for indoor use. Recommended tightest continuous bend radius is 1.1 inch (28mm).
Operates simultaneously in the 698-960 MHz and 1710-2700 MHz bands, + GPS.
Dual band 4G LTE antenna, puck style, permanent mount
GPS operates as Active or Passive: See details below.
Typically used as vehicle antenna (cars, trucks) but useful and applicable for many applications.
Suitable for LTE / 4G, LTE-m, 3G / GSM, LoRa.
GPS operates as Active or Passive: See details below.
Cable is double-shielded, low-loss and very flexible. The cable-type is equivalent or better than LMR-100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174. The higher quality of the cable of this antenna translates into lower loss/better performance. These antenna cables are rated for outdoor use and are also suitable for indoor use. Recommended tightest continuous bend radius is 1.1 inch (28mm).
Product parameter
|
Model Number |
WL-23E8015-3000 |
|
Frequency Range (MHZ) |
698-2700/1575.42MHz |
|
Gain (DBi) |
5/28dbi |
|
Polarization Type |
Vertical |
|
V.S.W.R (≤) |
2.0 Maximum |
|
Imput Impendence (Ω) |
50 |
|
Connectr Type |
SMA Male |
|
Dimensions (mm) |
80*15 |
