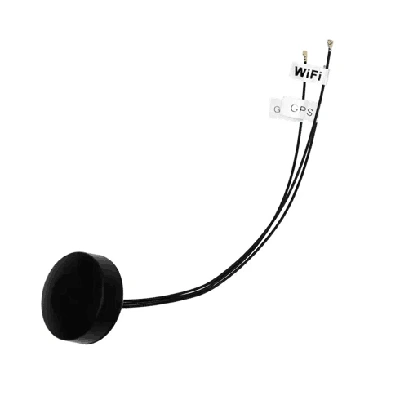

46*15mm Waterproof Combo Antenna
For all of our antennas that cover the GPS frequency 1.5GHz: We can convert the 1.5GHz GPS antenna to 1.6GHz in order to cover the Iridium (Satellite) frequency. This customization takes about 4 extra weeks in
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product features
4G/LTE & GPS Combination Antenna with three antenna cables & connectors (customizable).
Operates simultaneously in the 698-960 MHz and 1710-2700 MHz bands, + GPS .Dualband 4GLTE + GPS antenna, puck style, permanent mount
Has main/div (main / AUX) connections + GPS connection:
Three separate cables for LTE, LTE-AUX, and GPS: All three 6-ft cables terminate with SMA-male connectors.
Typically used as vehicle antenna (cars, trucks) but useful and applicable for many applications.
Ideal for 4G/3G applications where no ground plane or metal surface is available. Mechanically robust design suitable for both indoor and outdoor applications with wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.
The GPS antenna has SAW to filter other signals.
The GPS internal antenna has a metal shield on its bottom side as a ground plane
Data Alliance's high-quality soldered terminations of SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
Operates simultaneously in the 698-960 MHz and 1710-2700 MHz bands, + GPS .Dualband 4GLTE + GPS antenna, puck style, permanent mount
Has main/div (main / AUX) connections + GPS connection:
Three separate cables for LTE, LTE-AUX, and GPS: All three 6-ft cables terminate with SMA-male connectors.
Typically used as vehicle antenna (cars, trucks) but useful and applicable for many applications.
Ideal for 4G/3G applications where no ground plane or metal surface is available. Mechanically robust design suitable for both indoor and outdoor applications with wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.
The GPS antenna has SAW to filter other signals.
The GPS internal antenna has a metal shield on its bottom side as a ground plane
Data Alliance's high-quality soldered terminations of SMA connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
Product parameter
|
Model Number |
KSWR-052307 |
|
Frequency Range (MHZ) |
890-980/1710-1900/2400-2500/1575.42MHz |
|
Gain (DBi) |
2/28dbi |
|
V.S.W.R (≤) |
≤1.9 |
|
Imput Impendence (Ω) |
50 |
|
Connectr Type |
IPEX or customized |
|
Dimensions (mm) |
46*15 |
