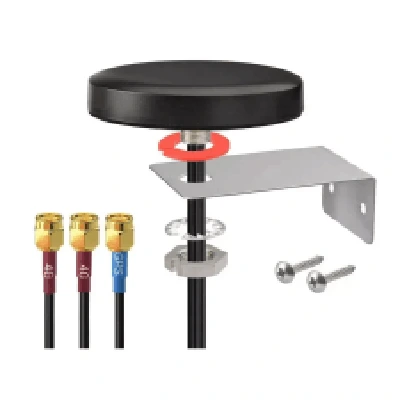

80*15mm 4G+4G+GPS Combo Antenna
Cable is double-shielded, low-loss and very flexible. The cable-type is equivalent or better than LMR-100: Coax with black jacket has the same or better signal-loss-per-meter and flexibility as LMR100, and less attenuation (signal loss) than RG174. The higher quality of the cable of this antenna translates into lower loss/better performance. These antenna cables are rated for outdoor use and are also suitable for indoor use. Recommended tightest continuous bend radius is 1.1 inch (28mm).
Product features
Has main/div (main / AUX) connections + GPS connection:
Two separate cables for LTE and GPS: Both 9-ft cables terminate with SMA-male connectors.
Typically used as vehicle antenna (cars, trucks) but useful and applicable for many applications.
V.S.W.R. < 1.5 : Very Low V.S.W.R. that is indicative of a very high-quality, high performance antenna.
IoT wireless & M2M: Compatible with many machine to machine communication applications, remote monitoring, and telemetry applications using LTE-m, 4G / LTE, 3G / GSM, LoRa.
WiFi bands 2400 MHz & 900MHz
WiMAX frequency bands 2300 MHz / 2500 MHz / 2600 MHz (2.3GHz, 2.5GHz, 2.6GHz)
The GPS antenna has SAW to filter other signals.
The GPS internal antenna has a metal shield on its bottom side as a ground plane.
Product parameter
|
Model Number |
WL-223ED8015-3000 |
|
Frequency Range (MHZ) |
1575.42/698-2700mhz |
|
Gain (DBi) |
28/5/5DBI |
|
V.S.W.R (≤) |
≤1.9 |
|
Imput Impendence (Ω) |
50 |
|
Connectr Type |
SMA/FKara or customized |
|
Dimensions (mm) |
80*15 or customized |
