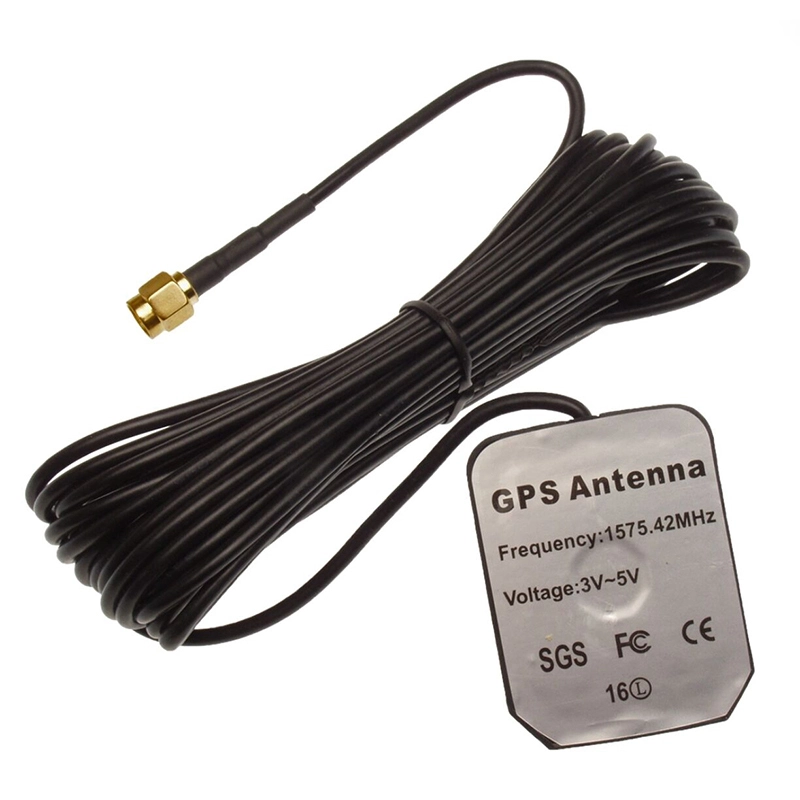

Brand New • 16ft/5m Down Lead • L1 GPS Antenna • 28dB Gain • 3V-5V Power • SMA Male Connector • Magnetic Mount • RG-174 Flexible Downlead

These antennas are ideal for GPS devices providing 3-5V antenna voltage feed (which is almost all devices apart from some Symmetricom and most Meinberg units). If in doubt measure the voltage across the SMA antenna jack on your receiver using a voltmeter. Note that this is fitted with an SMA Male connector (ie. with a central pin), not an RP-SMA connector which does not have the pin.

Key Features

● Active GPS antenna with internal low noise amplifier

● Magnetic Mount

● SMA Male Connector

● 3V to 5V supply voltage

Inquiry

Write a Review

Product parameter

Centre Frequency	1575.42MHz ± 3MHz	VSWR	=1.5
Impedance	50 ohm	Polarization	RHCP
LNA Gain	28 dB +/-2dB	Noise Figure	=2dB
DC Voltage	3-5V	DC Current	12±3mA
Dimensions	49 x 37 x 16mm (1.9 x 1.5 x 0.63") approx	Cable	RG174 5m/16 feet
Connector	SMA Male	Mounting	Magnetic
Housing Color	Black	Working Temperature	-40°C to +85°C
Humidity	95%25 to 100%25 RH	Waterproof	IP67
