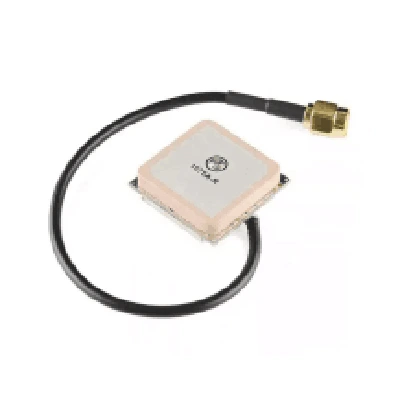

25*25mm GPS Antenna
Conversion to Iridium Satellite Coverage: For all of our antennas that cover the GPS frequency 1.5GHz: We can convert the 1.5GHz GPS antenna to 1.6GHz in order to cover the Iridium (Satellite) frequency. This customization takes about 4 extra weeks in production and will increase the cost of the antenna by $1.75 per antenna.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product features
U.FL female has a socket. U.FL male has a pin and is the connector that is the "jack" on devices such as Bluetooth boards and ZigBee radios such as XBee, Printed Circuit Boards (PCBs) and internal mini-PCI wireless cards (even though the gender is male, it is the jack U.FL connector.
U. FL connectors are widely used in M2M and IOT (Internet of Things) wireless applications.
U. FL female right-angle type is the most common U.FL connector type found on U.FL cables: 95% of U.FL cables have a U.FL female right-angle connector.
Gender Determination: Micro-connectors such as U.FL have gender that is counter to typical RF terminology for gender, in that "jack" is more typically synonymous with "female:" A U.FL jack on a board (PCB) is the male U.FL, and the connector that mates with the jack is the female.
Connecting and disconnecting U.FL connectors from the jack can be difficult to do properly without damaging the U.FL connector or jack. We offer a U.FL insertion tool to enable you to connect/insert and remove/disconnect easily, without causing any damage to the cable, connector or jack.
U.FL connector is also known as Ultra Miniature Coax Connectors (UMCC), and enables attaching antenna to a U.FL jack/connector on PCBs: U.FL female mates with a female Hi Rose/U.FL jack, also known as U.FL-LP-66 jack/connector.
U. FL connector is precision machined and gold-plated brass for low signal loss.
U. FL connectors are widely used in M2M and IOT (Internet of Things) wireless applications.
U. FL female right-angle type is the most common U.FL connector type found on U.FL cables: 95% of U.FL cables have a U.FL female right-angle connector.
Gender Determination: Micro-connectors such as U.FL have gender that is counter to typical RF terminology for gender, in that "jack" is more typically synonymous with "female:" A U.FL jack on a board (PCB) is the male U.FL, and the connector that mates with the jack is the female.
Connecting and disconnecting U.FL connectors from the jack can be difficult to do properly without damaging the U.FL connector or jack. We offer a U.FL insertion tool to enable you to connect/insert and remove/disconnect easily, without causing any damage to the cable, connector or jack.
U.FL connector is also known as Ultra Miniature Coax Connectors (UMCC), and enables attaching antenna to a U.FL jack/connector on PCBs: U.FL female mates with a female Hi Rose/U.FL jack, also known as U.FL-LP-66 jack/connector.
U. FL connector is precision machined and gold-plated brass for low signal loss.
Product parameter
|
Frequency Range (MHZ) |
1575.42 |
|
Gain (DBi) |
2dbi |
|
Polarization Type |
RHCP |
|
V.S.W.R (≤) |
≤2 |
|
Imput Impendence (Ω) |
50 |
|
Connectr Type |
IPEX/MCX or customizable |
|
Dimensions (mm) |
25*25/18*18/15*15/12*12mm |
