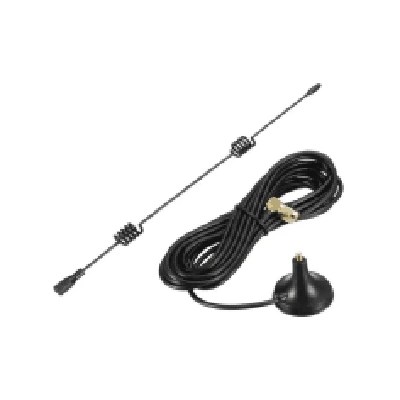

225mm WiFi Magnetic Antenna
● UL certification / rating of the flammability of the antenna housing (ABS)
● Test Method: UL-94
● The flame class of this ABS material is HB
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product features
Connect to access points in any direction
For WiFi, Bluetooth, ZigBee, and any other wireless protocol that uses the 2.4GHz frequency band.
Version with RP-SMA male connector has a 5 foot (1.5-meter) cable
Versions with MMCX-male right-angle connector and RP-TNC male connector have a 2-meter cable (6.5 FT)
Customizable: If you would like this antenna with SMA or any other connector-type, or with a different length of the cable, we can customize this for purchase of qty 40 or more.
Double-shielded, low-Loss Cable: LMR100-equivalent low-loss cable is of much higher quality than the typical pigtail cables for antennas of this size (typically RG174). The cable color is black.
Data Alliance's high-quality soldered terminations of RP-SMA, MMCX and RP-TNC connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
IoT wireless & M2M: Bluetooth, ZigBee, and ISM. Since it is vertically polarized, it is compatible with many machine to machine communication applications, remote monitoring, and telemetry applications.
2.4GHz WiFi applications: 802.11N, 802.11G, 802.11B
Version with RP-SMA male connector has a 5 foot (1.5-meter) cable
Versions with MMCX-male right-angle connector and RP-TNC male connector have a 2-meter cable (6.5 FT)
Customizable: If you would like this antenna with SMA or any other connector-type, or with a different length of the cable, we can customize this for purchase of qty 40 or more.
Double-shielded, low-Loss Cable: LMR100-equivalent low-loss cable is of much higher quality than the typical pigtail cables for antennas of this size (typically RG174). The cable color is black.
Data Alliance's high-quality soldered terminations of RP-SMA, MMCX and RP-TNC connectors with soldering provide a low-loss connection with discontinuities kept to a minimum.
IoT wireless & M2M: Bluetooth, ZigBee, and ISM. Since it is vertically polarized, it is compatible with many machine to machine communication applications, remote monitoring, and telemetry applications.
2.4GHz WiFi applications: 802.11N, 802.11G, 802.11B
Product parameter
|
Model Number |
WL-2400E225 |
|
Frequency Range (MHZ) |
2400-2500/5000-5800MHz |
|
Gain (DBi) |
9dbi |
|
Polarization Type |
Vertical |
|
V.S.W.R (≤) |
≤1.9 |
|
Imput Impendence (Ω) |
50 |
|
Connectr Type |
RP-SMA Male or customized |
|
Dimensions (mm) |
225mm |
